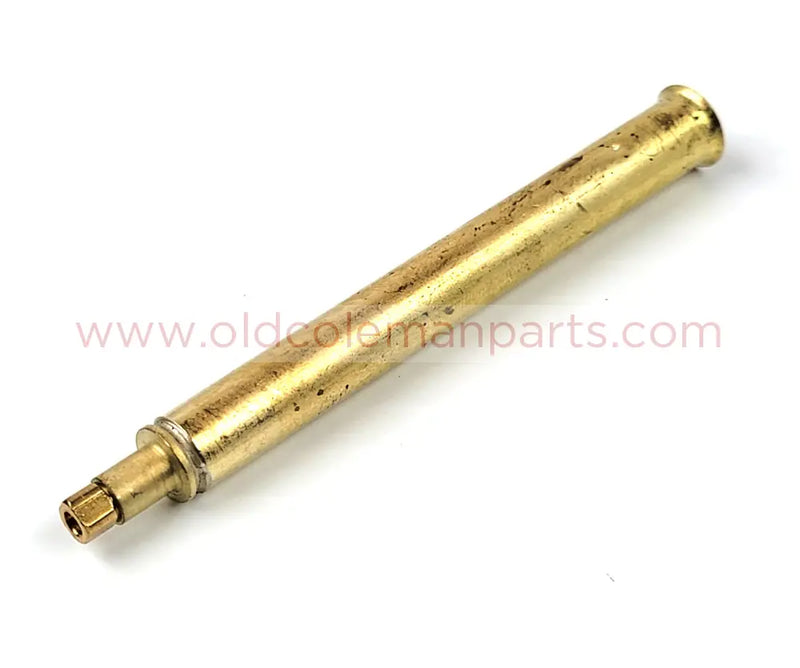

Coleman 226 Lantern Generator – C031

SKU: 226-2991-5

Genuine Coleman replacement generator for Coleman 226A700 and 226-700 lanterns. This newly manufactured generator includes:

• Gas tip

• Spring

• Tip-cleaning wire

Also known as Coleman part number 3000005088.

Important Information for Coleman 222 Lanterns

Coleman discontinued the original 222 generator and now recommends this generator as its replacement. It can work well in a Coleman 222, but it is not a direct replacement without changes to the heat shield.

This generator is wider than the original 222 generator and will interfere with the existing heat shield. To use it on a 222 lantern, you will need to do one of the following:

• Fabricate or modify a heat shield to provide enough clearance

• Install the heat shield arrangement used on a Coleman 226 or 229 lantern

The replacement heat shield, Coleman part number 5414-4605, has been discontinued and is not included or available to order from Coleman.

If you are installing this generator on a 222, plan on addressing the heat shield situation.
